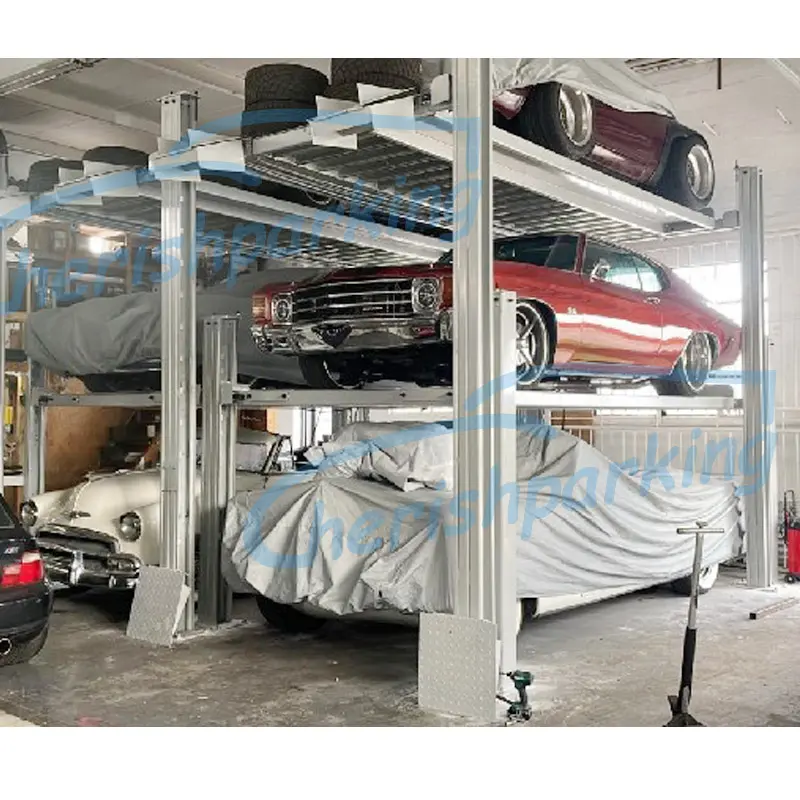

Triple Level Four Post Parking Lifts Car Stacker
Products Feature
· It can be applied in homes, commercial settings, and vehicle storage facilities, catering to a wide range of needs.
· Two independent 4 - post parking lifts are installed together, one on the top and the other at the bottom, optimizing space utilization.
· Hydraulic drive cylinders, combined with a pulley - wire rope lifting system, ensure smooth and stable lifting operations.
· There is an automatic locking system for the internal latch of the ladder. Meanwhile, the electromagnetic lock can be released via a button on the operation box for easy access.
· The hot - dip galvanized and corrugated platform is not only safe but also has a long service life, resistant to wear and tear.
· The foldable ramp is designed for sports cars, taking up less space while facilitating vehicle entry and exit.
· The anti - slip corrugated deck protects vehicles and drivers from potential slips and damage, enhancing safety during use.
· Italian oil seals are used to ensure no oil leakage. The piston rod is chrome - plated to prevent corrosion, guaranteeing its long - term performance.
Specifications
| CHFL4-3 | Upper Platform | Lower Platform |
| Lifting capacity | Ground floor unlimited, 2nd floor 3000kg,3rd floor sedan 2000kg | |
| Total width | 2671 mm | |
| Outside length | 6120 mm | |
| Height of post | 3836mm | 2276mm |
| Maximum lifting height | 3540mm | 1960mm |
| Distance between posts | 2353mm | |
| Runway width | 473mm | |
| Runway length | 4630mm | |
| Motor | 220V, 50Hz, 1 Ph (special voltages available upon request) | |
| Motor | 2.2 kw | |
| Surface treatment | Powder coating or galvanizing | |
| Operation Model | Key switch + control button | |
| Safety | 4 safety lock per floor and auto protection device | |

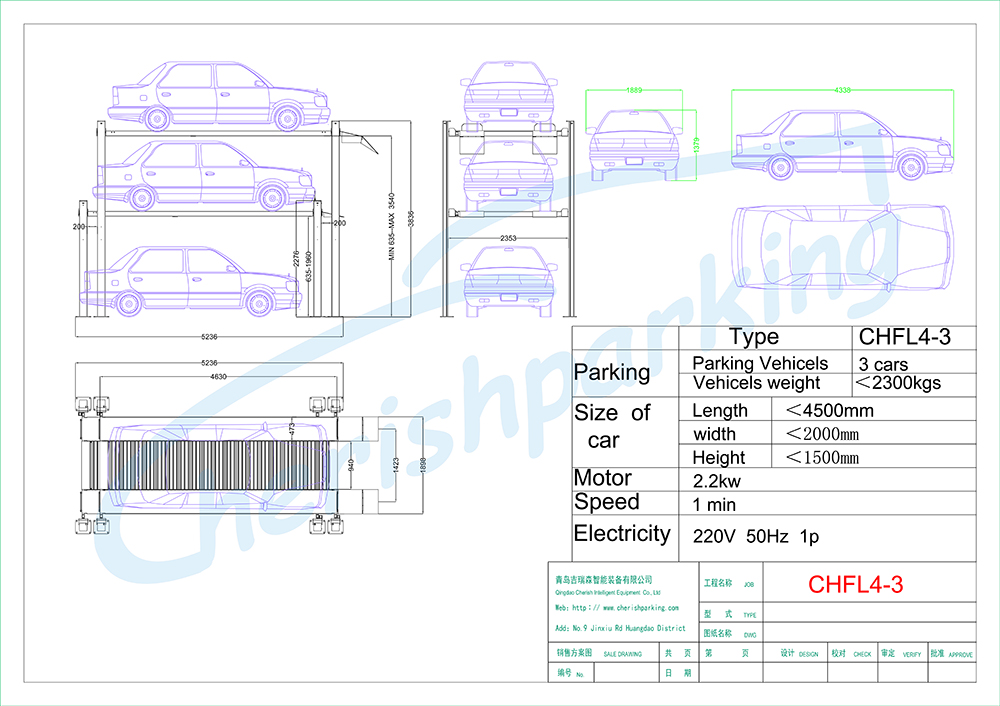

Drawing & Case
