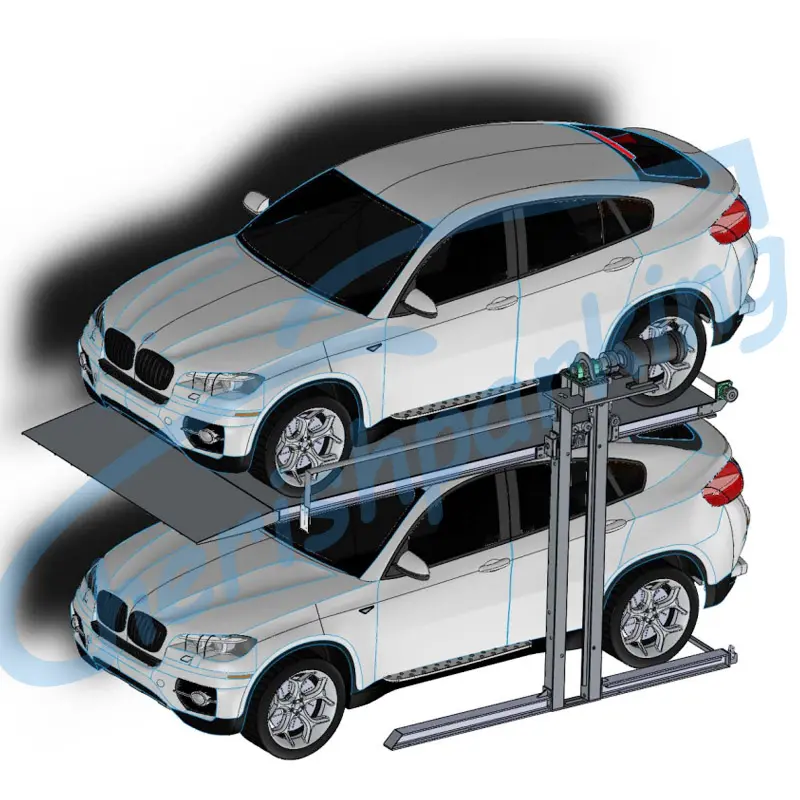

Motor Drive Two Post Parking Lift Double Level Car Stacker
Products Feature
· A guiding mechanism is employed to ensure smooth movement. This mechanism precisely steers the operation, minimizing vibrations and ensuring a stable and seamless motion, whether it's linear or rotational.
· The motor and chain are designed for enhanced stability and operate with low noise. High - quality components and advanced engineering contribute to their reliable performance, creating a quiet working environment.
· It features an electromechanical multi - safety structure, offering a high level of safety. Multiple safety features are integrated, safeguarding against various potential hazards during operation, protecting both the equipment and the users.
· The wiring is neatly arranged inside the equipment. This not only prevents any leakage risks but also gives the equipment an aesthetically pleasing appearance. It combines functionality with a clean and tidy look.
· There is a spacious ground area, which can accommodate SUVs or other commercial vehicles. This large - scale parking space meets the parking needs of different vehicle types, providing convenience for users with larger vehicles.
Specifications
| Model No. | CHPLC2000 |
| Lifting Capacity | 2300 kg |
| Lifting Height | 1845 mm |
| Usable Platform Width | 2140 mm |
| Overall Height | 2625 mm |
| Overall Length | 4382 mm |
| Overall Width | 2400 mm |
| Power Supply / Motor Capacity | 220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 2.2Kw 50/45s |
| Lock Release | Electric Release (Also could choose manual release) |
| Drive Mode | Motor Drive + Chain |

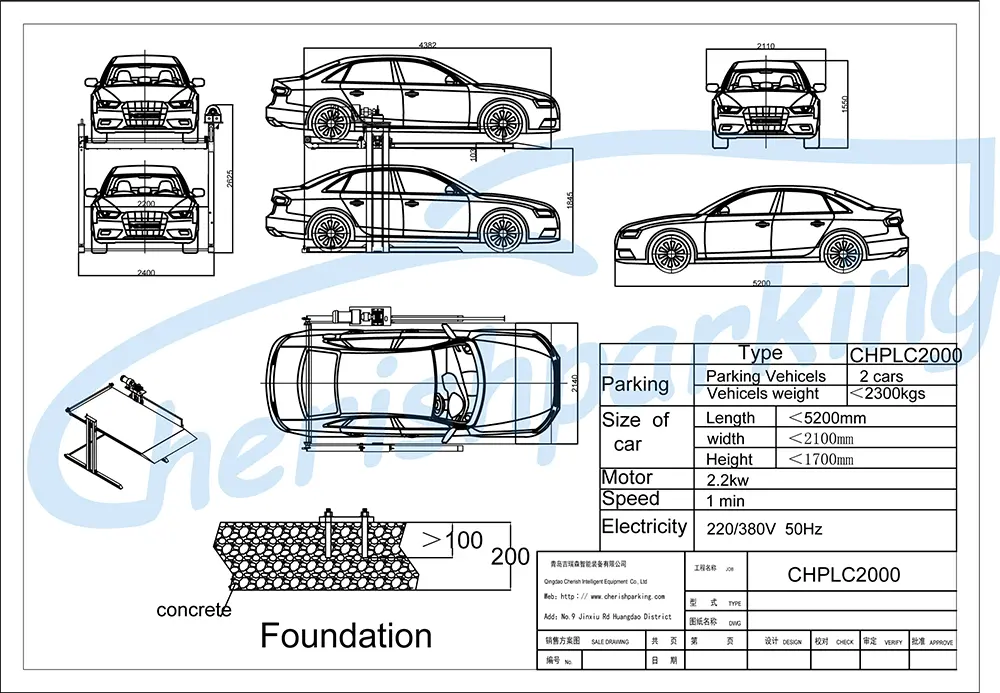

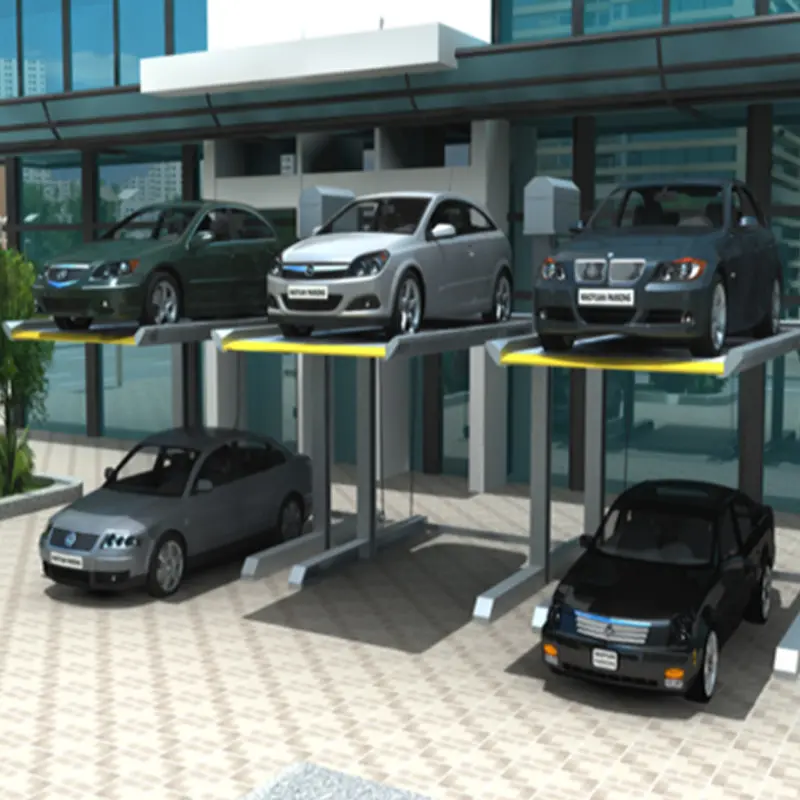

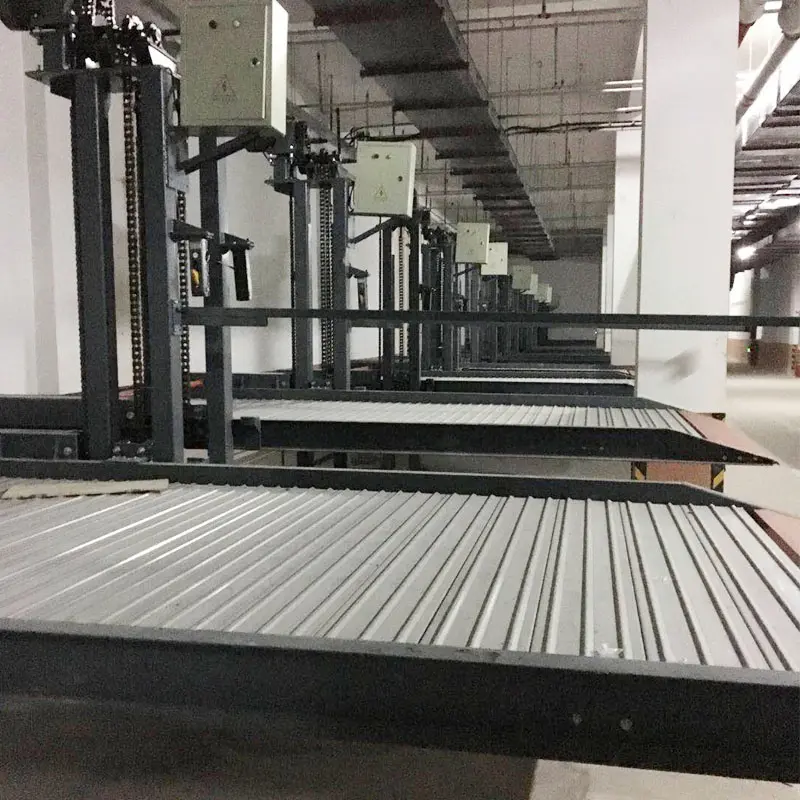

Drawing & Case
