Mobile Column Truck Lift Wireless Hydraulic Lift
Products Feature
1. Radio control (non-Bluetooth), no cables required: Adopting advanced industrial-grade radio communication methods, the equipment has good signal stability and penetration. The signal module is an industrial-grade customized product with the characteristics of long communication distance, strong penetration function, stable signal, and strong anti-interference ability.
2. Dual communication frequency band design: The communication part adopts two groups of communication modules to prevent the lift from continuing to work when one group of communication modules fails. There is another group of communication modules as a backup. Each group of communication modules has 16 communication channels, and the two groups have a total of 32 communication channels.
3. Built-in battery: The built-in 100AH battery design can be started and stopped frequently, with large capacity and long service life.
4. Intuitive operation: Each column has a 7.5-inch color LCD touch screen, which can set various parameters of the lift. Each screen has a height bar display chart, which can more intuitively view the height of each column from a distance.
5. Convenient operation interface: Each display screen has a Chinese fault display area, which can directly display the working status and fault information in Chinese.
6. Easy charging: When charging, just plug the charging power cord into the charging port to charge. The charger adopts intelligent charging design, which automatically adjusts the charging current according to the remaining power of the battery, which can effectively extend the battery life. After detecting that the battery is fully charged, it automatically stops charging and will not overcharge.
7. Adjustable wheel fork for different wheel sizes: The movable fork design can be adjusted according to the size of the tire, and the maximum tire diameter is 1160mm.
8. Hydraulic cylinder: The built-in oil cylinder design is adopted, and the existence of the oil cylinder is completely invisible from the outside, which ensures the safety of the oil cylinder.
9. Double load safety: Explosion-proof valve: In addition to the self-locking function of the hydraulic system itself, an explosion-proof valve is also installed. Even if the oil pipe suddenly bursts, it will not fall suddenly to ensure safety. Mechanical lock: The ridged rack design is adopted to protect the equipment at any height. The mechanical lock is automatically locked when rising. When descending, the system will open the mechanical lock first, and then the oil pressure will return, and the equipment can fall.
10. Any lifting height can be locked: The handheld lifting design is adopted. The equipment will only lift when the rising button is pressed. The action can be stopped at any time by releasing the button.
11. Universal column design: Each column is equipped with a single-action and total-action button. Each column can be lifted and lowered individually and in total. The whole equipment can be controlled at any column.
12. The column has a long-term memory function: The physical memory design is adopted, and the original height can be guaranteed by restarting the machine under any circumstances.
13. Multi-column lifting hydraulic automatic balancing system: This equipment adopts an industrial-grade chip automatic control system. The error of each column can be set at will during lifting. For example, the error is set to 25mm, that is, the lifting height error between each column exceeds 25mm. The chip control automatically accelerates or decelerates to make the error between the columns return to within 25mm. The error value can be set at will on the touch screen according to the actual situation. Keep the vehicle stable during the automatic adjustment process without shaking.
14. Priority operating system: It is designed with priority operation. To prevent accidents caused by multiple people's misoperation, the program is designed that when multiple people are working on the same equipment, only the first operation instruction is valid, and the lift will not have a second action if other people press the button by mistake.
15. Hydraulic system: The hydraulic part of the equipment is customized by our company and uses imported hydraulic valve groups to ensure the stability and precision of the system.
16. It can rise and fall smoothly: It uses a unique electronically controlled hydraulic valve, which can automatically adjust the lifting speed according to the height of each column to ensure the balance of the vehicle lifting, instead of adjusting the balance by opening and closing the solenoid valve.
17. Variable speed: adjustable lifting speed The lifting speed of a single column is adjustable, and the lifting speed is automatically balanced when the total movement is in progress.
18. Shared by any column: All columns are equipped with the same hardware and software and can be switched at will.
19. Flexible combination of equipment: The number of columns can be increased according to actual needs, such as 6 columns, 8 columns and above, etc.
Specifications
| Total loading weight | Touch screen+button+remote control |
| One lift’s loading weight | About 21mm/s |
| Lifting height | hydraulic |
| Operate mode | 24V |
| Up&down speed | 220V |
| Drive mode： | Wireless analog communication |
| Working voltage： | Mechanical lock+ explosion-proof valve |
| Charging voltage： | 4×2.2KW |
| Communication mode： | 2.8t |
| Safe device： | 100A |
| Motor power： | 1250×1140×2320mm |
| Total equipment weight | Touch screen+button+remote control |
| Battery capacity： | About 21mm/s |
| Outside dimensions： | hydraulic |

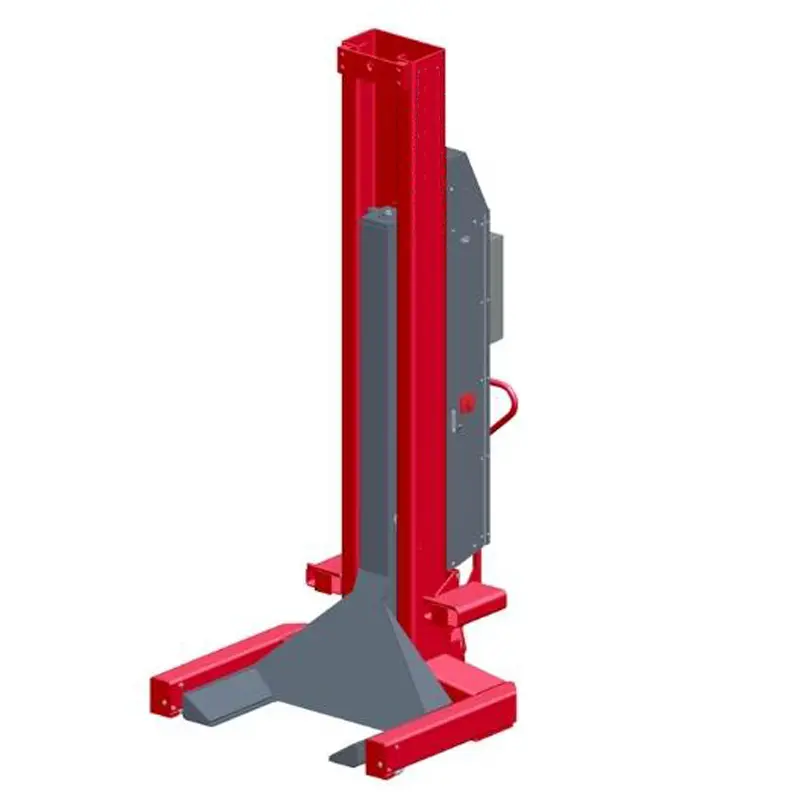

Drawing & Case
