Hydraulic Double Deck Underground Scissor Car Elevator Invisible Lift Platform

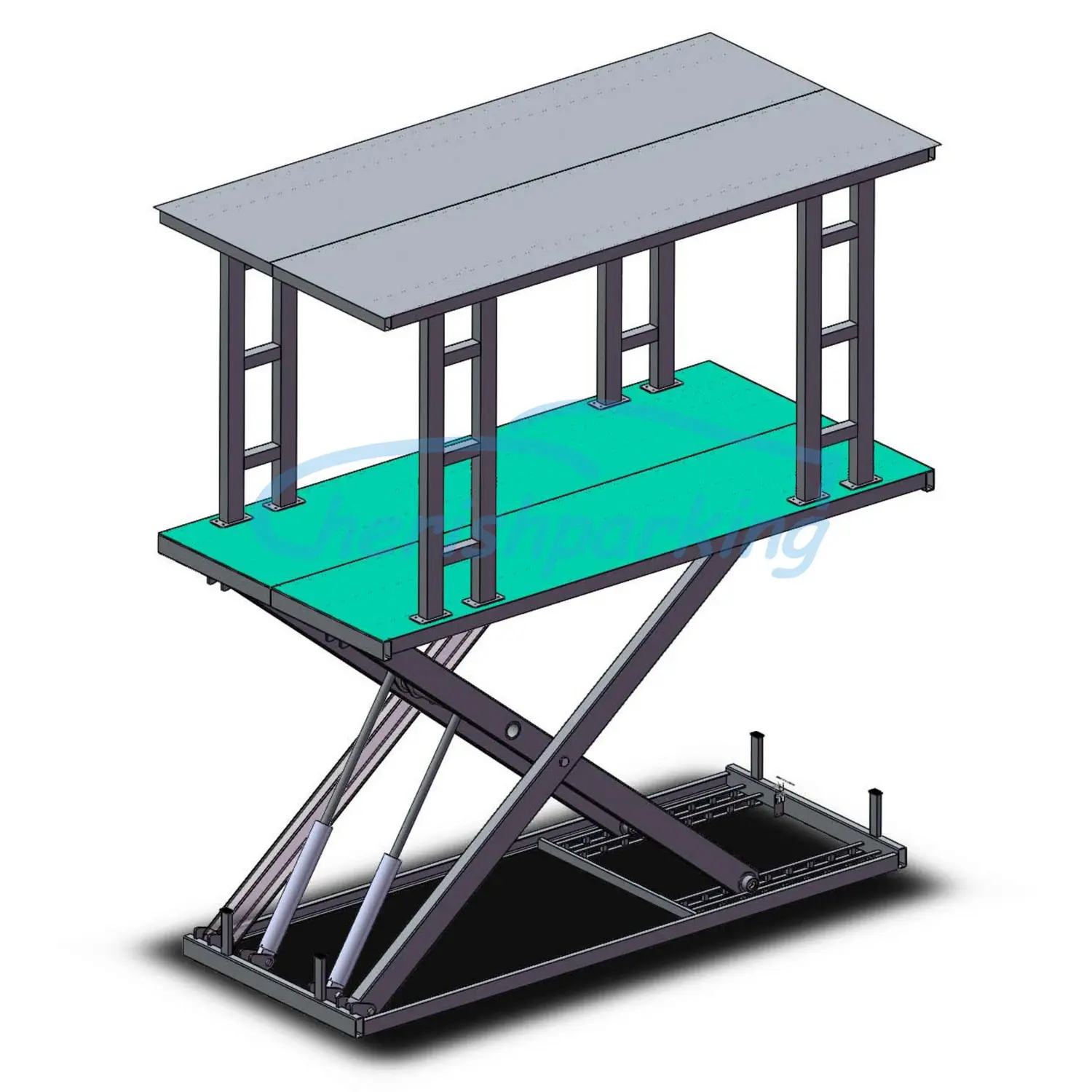

Double-Deck Scissor Car Lift, Harmoniously integrated with the surrounding environment, customizable, and requiring a pit installation The rapid increase in the number of cars has led to a shortage of parking spaces, resulting in traffic congestion and a decline in the quality of the living environment. The S-VRC-2 system is one of the perfect solutions to this problem. It has a dual - function design. Firstly, it can serve as a parking lift, enabling the stacking of one vehicle on top of another to maximize parking space utilization. Secondly, it can function as an elevator, efficiently transporting vehicles between the ground - level and basement parking floors. In both cases, when it is folded down, the top platform becomes completely concealed. It can then be covered with appropriate pavement materials, creating a neat and elegant appearance that seamlessly blends into the surroundings.

    Products Feature

    products-features-1
    - Dual functions, capable of independently achieving parking or vehicle transportation.

    - The top platform can be decorated to blend in with the surrounding environment and become invisible.

    - Optional to lift two cars simultaneously.

    - Overall lifting capacity: up to 5000 kg.

    - Platform size: up to 6000 mm in length and 5000 mm in width.

    - A foundation pit is required in all cases.

    - High - safety and easy - to - operate.

    - Semi - pre - assembled structure, easy to install.
    - Fine powder - coating surface treatment.

    - Remote control is optional.

    - Up to three platforms can be configured.

    - Suitable for garages in private houses or apartment buildings.

    - Applicable to prefabricated garages.

    - Utilized for vehicle transportation between floors, such as from the ground floor to upper floors or the basement.

    - Helps to provide more parking spaces in office buildings, as well as residential - commercial integrated buildings.

    - Can be optionally installed and used outdoors.

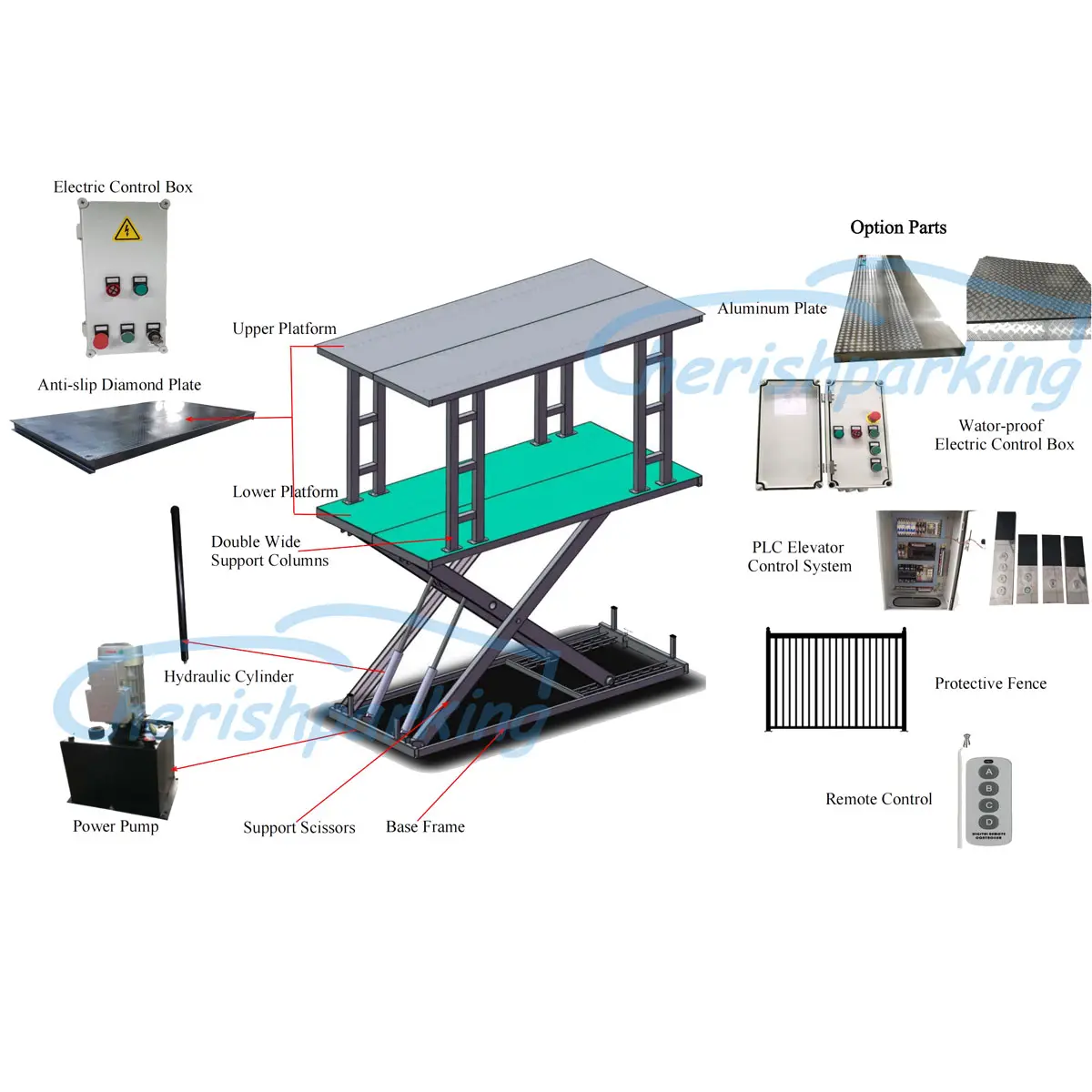

    products-features-2

    Specifications

    Model No. CSL-3
    Max Lifting Capacity 5000kgs
    Usable Platform width Customized
    Overall Height Customized
    Overall Length Customized
    Overall Width Customized
    Power Supply/Motor Capacity 380V, 50Hz, 3Ph, 5.5Kw
    Lock Release Electric Release
    Drive Mode Hydraulic Drive

    Drawing & Case

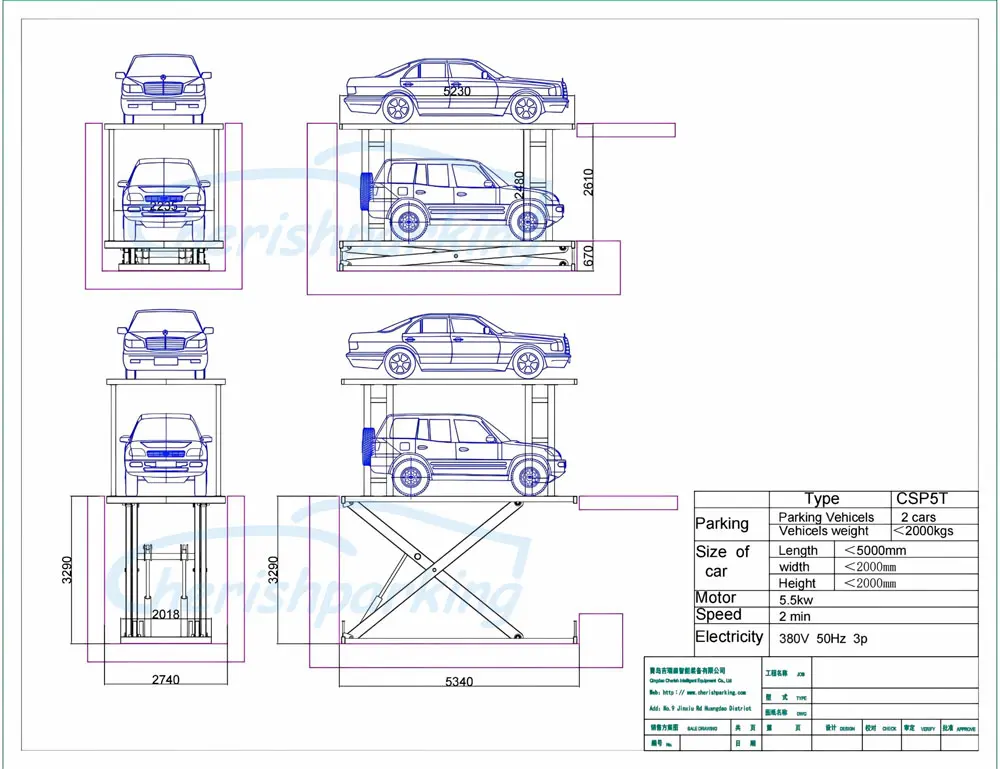

    drawing

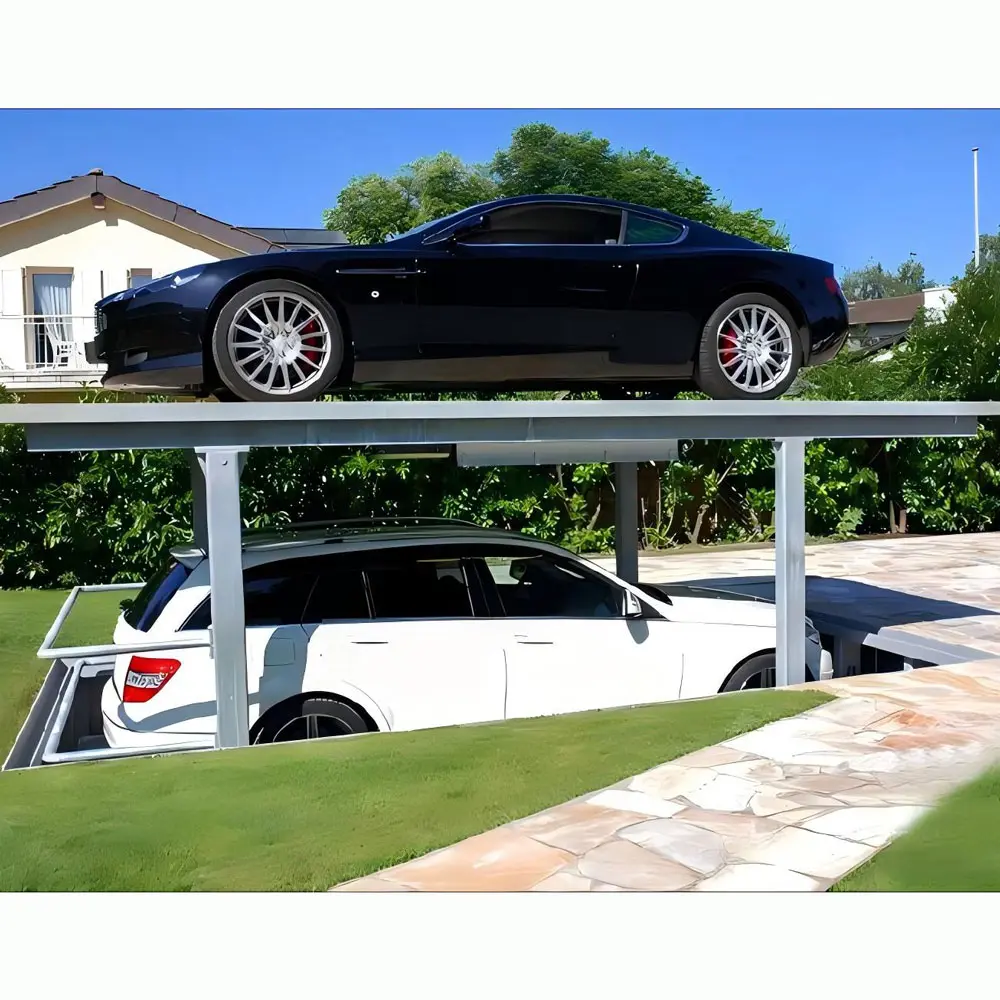

    cases-1

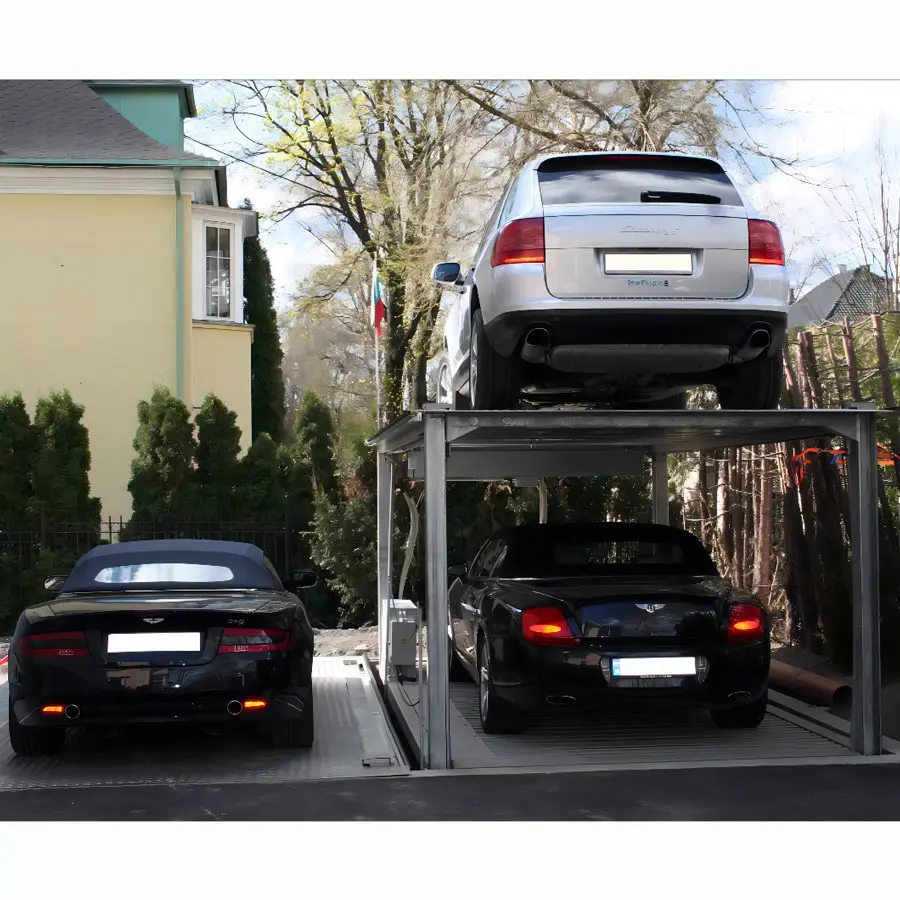

    case-2

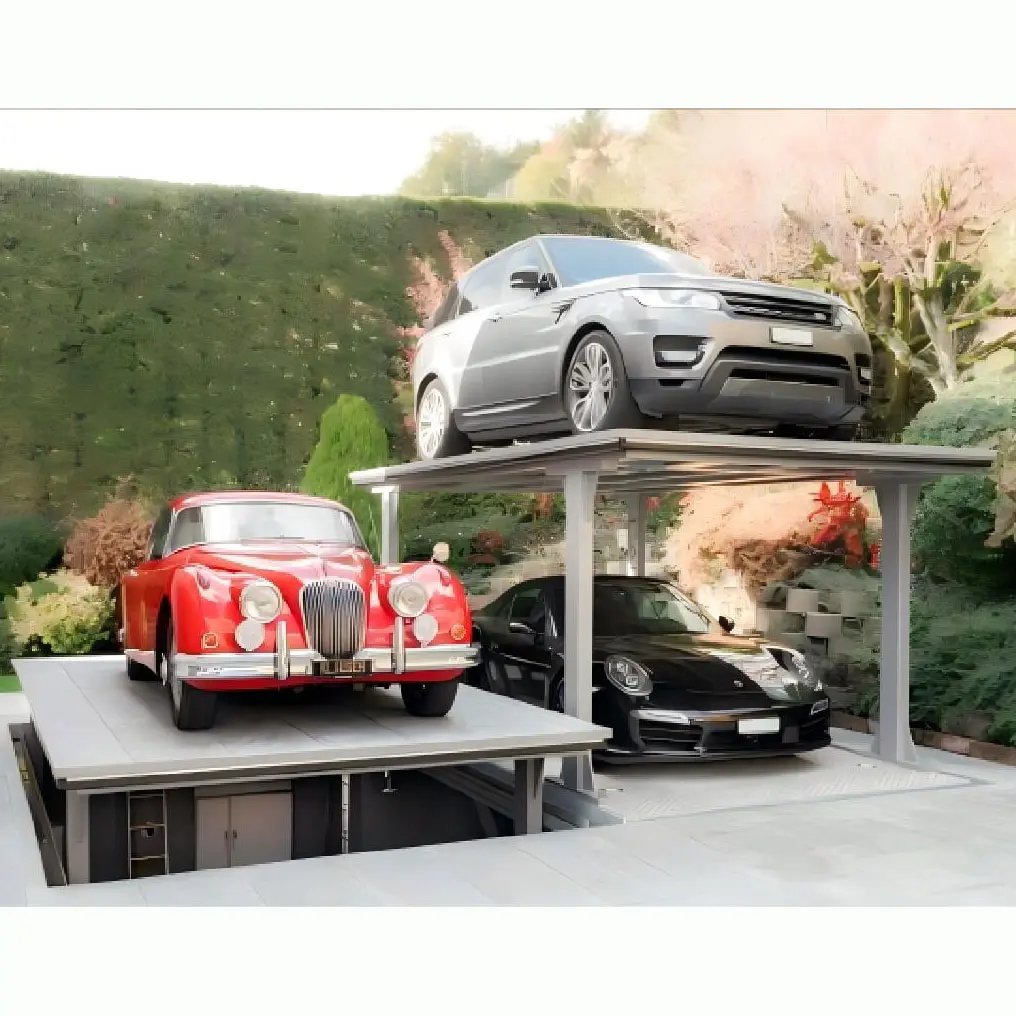

    cases-3
