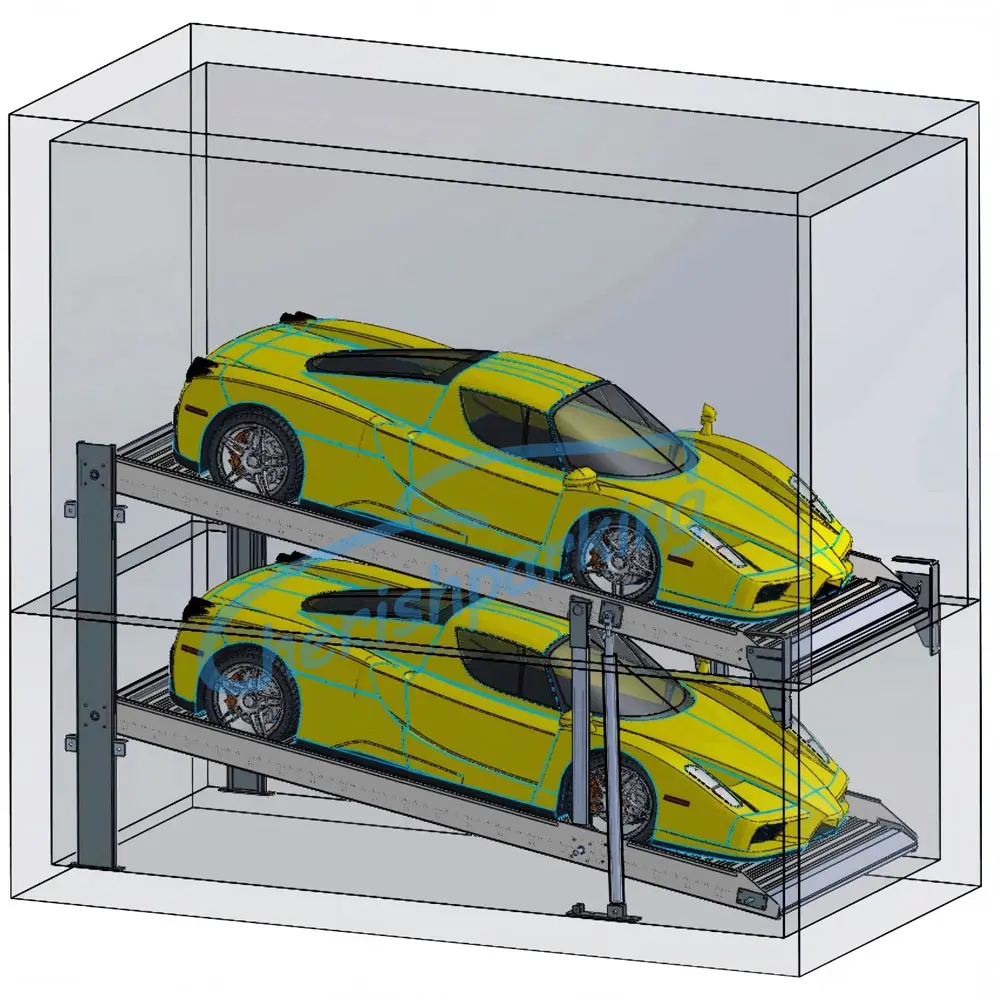

Double Deck 4 Post Car Lift Underground Parking Lift
Products Feature

● A parking solution designed for basement garages in residential and commercial buildings, eliminating the need to move the vehicles on the ground.
● The combination of galvanized corrugated plates and diamond - patterned plates offers a more premium parking experience.

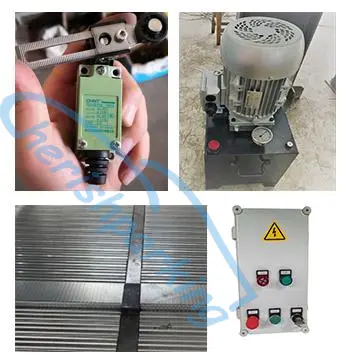

● It is directly driven by dual master - slave hydraulic lifting cylinders. Each unit is equipped with an independent hydraulic power unit and control panel.
● The load - bearing capacity for sedans can reach up to 2000 kg. Once the operator releases the key switch, the equipment automatically stops running.
● It is suitable for independent parking scenarios. A single platform can accommodate two cars, while a double platform can park four cars.
● All parking levels can be accessed in an inclined manner.
● The operating cost is low. When the platform descends, it is driven by gravity, eliminating the need for an electric motor.
● Professional packaging and delivery services are provided. Our professional packaging, along with an experienced logistics team, ensures that the products are delivered to customers in perfect condition. The compact packaging size simplifies the unloading and handling processes.

Specifications
Model No. | CPT-2 | CPT-4 |
Lifting Capacity | 2000kgs | 4000kgs |
Lifting Height | 1750mm | 1750mm |
Usable Platform width | 2330mm | 4502mm |
Overall Height | 4580mm | 4580mm |
Overall Length | 5300mm | 5300mm |
Overall Width | 2700mm | 4900mm |
Power Supply/Motor Capacity | 380V, 50Hz / 60Hz, 3Ph, 5.5Kw | |
Lock Release | Electric Release | |
Drive Mode | Hydraulic Drive + Chain |

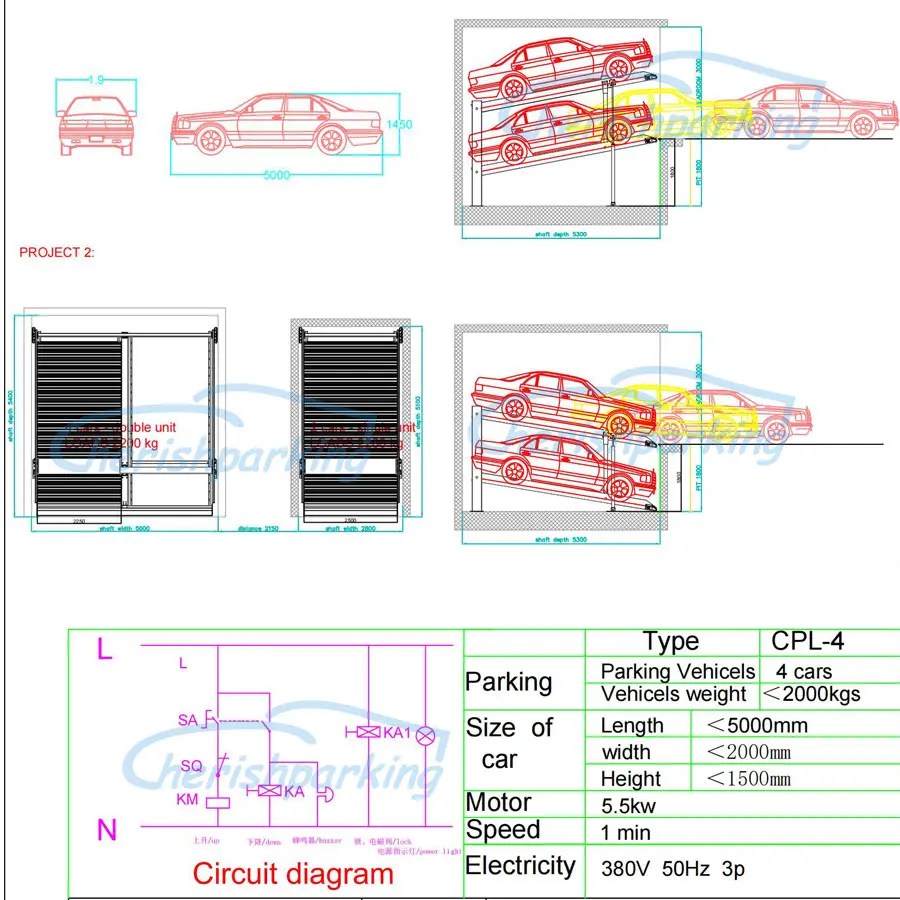

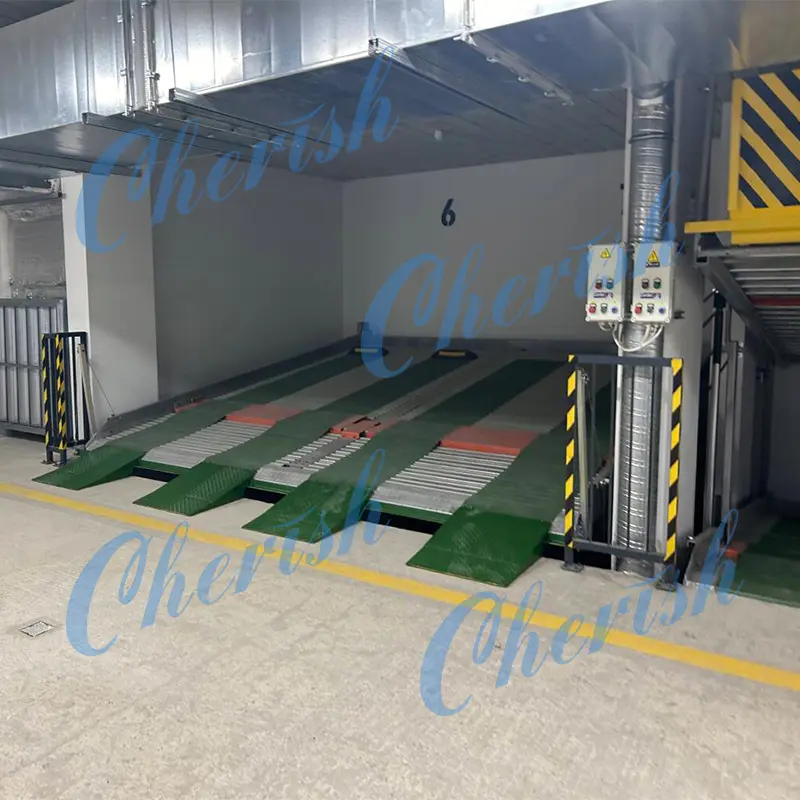

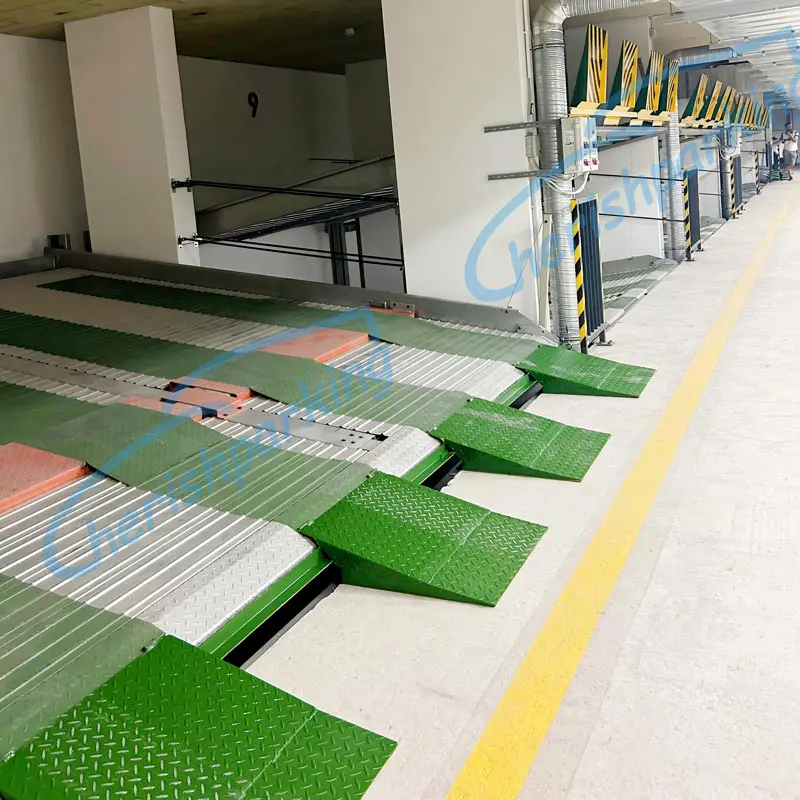

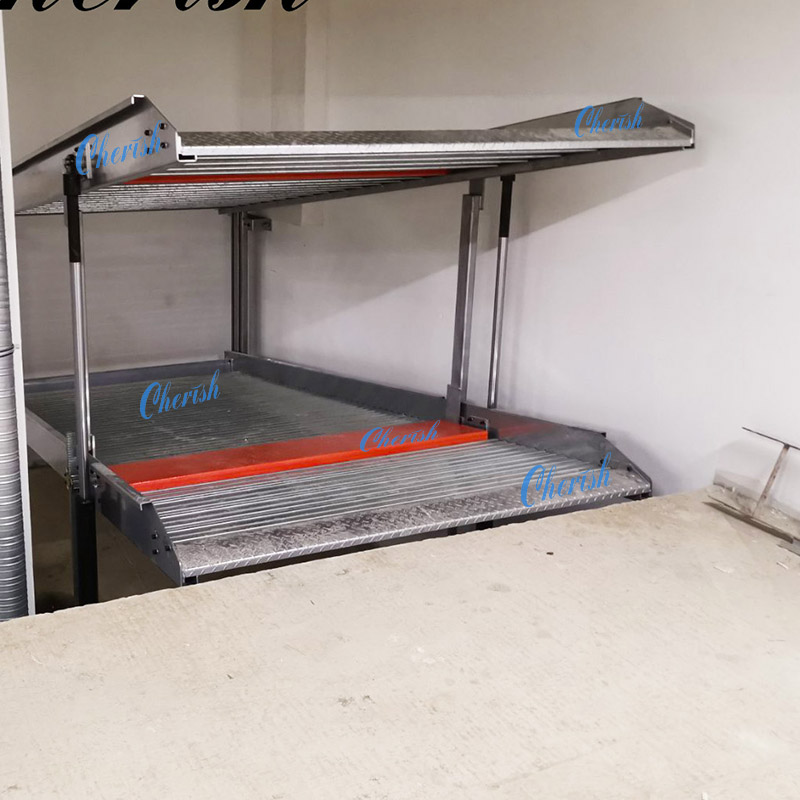

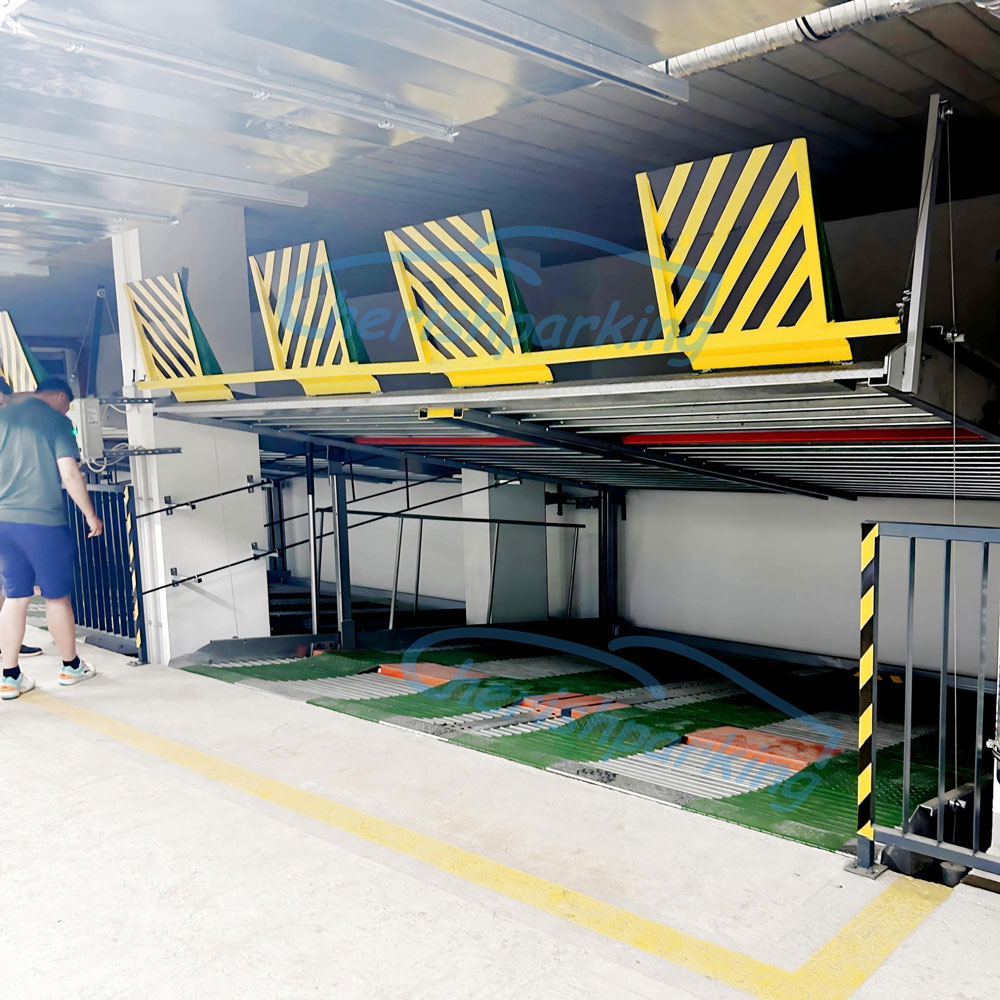

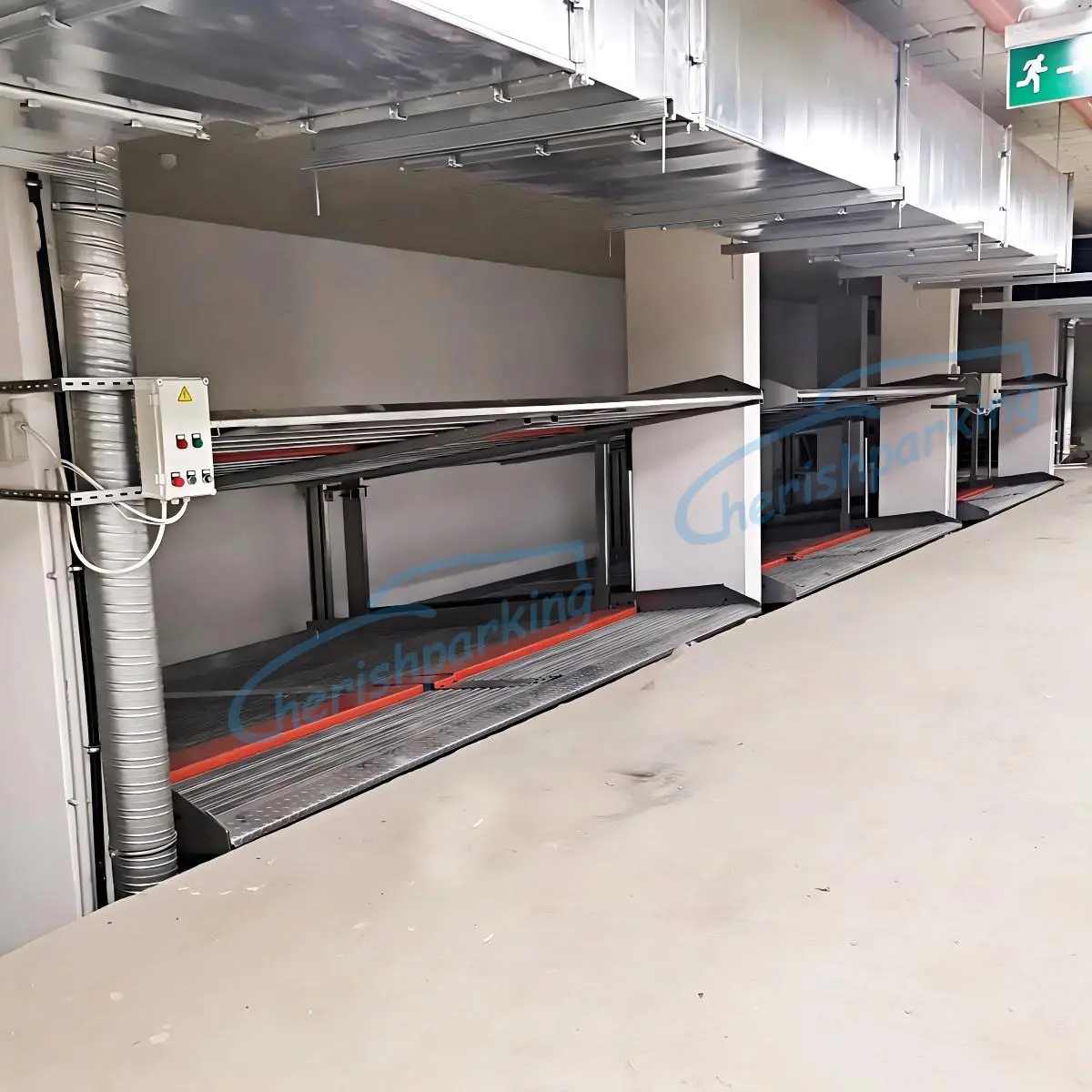

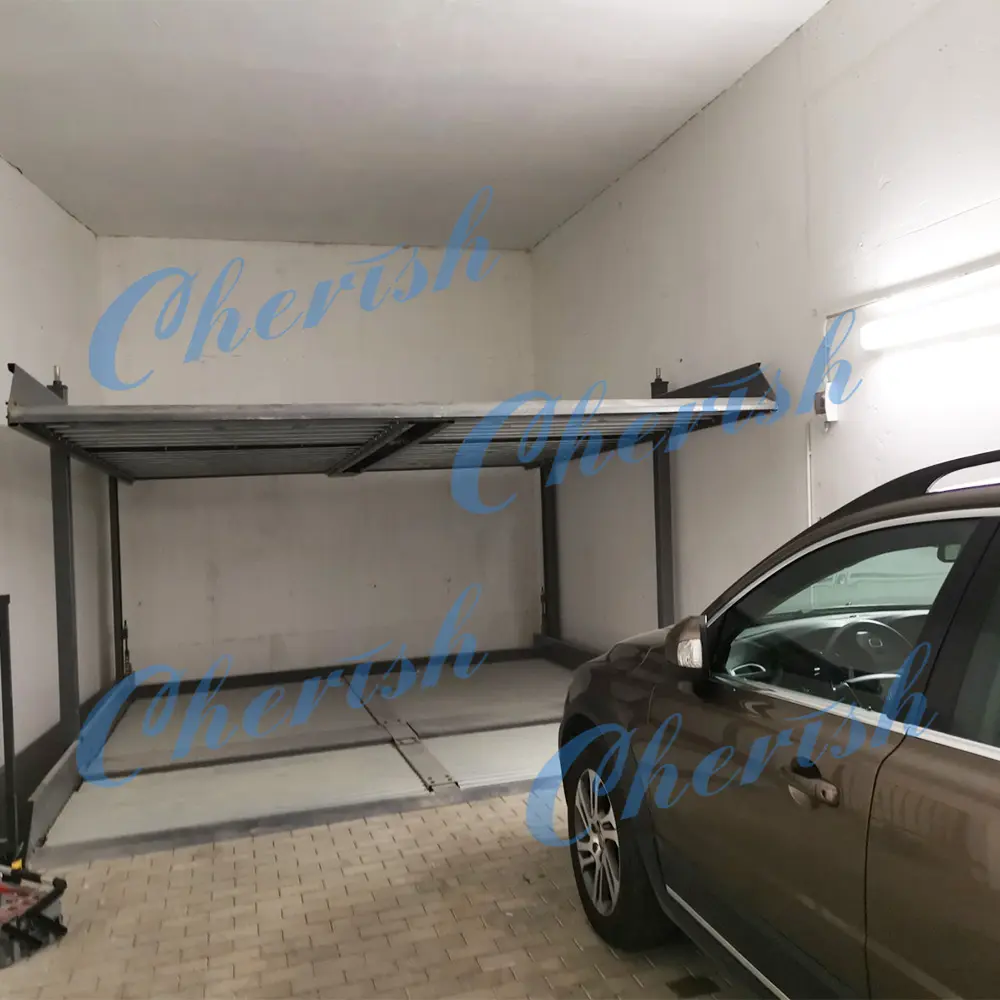

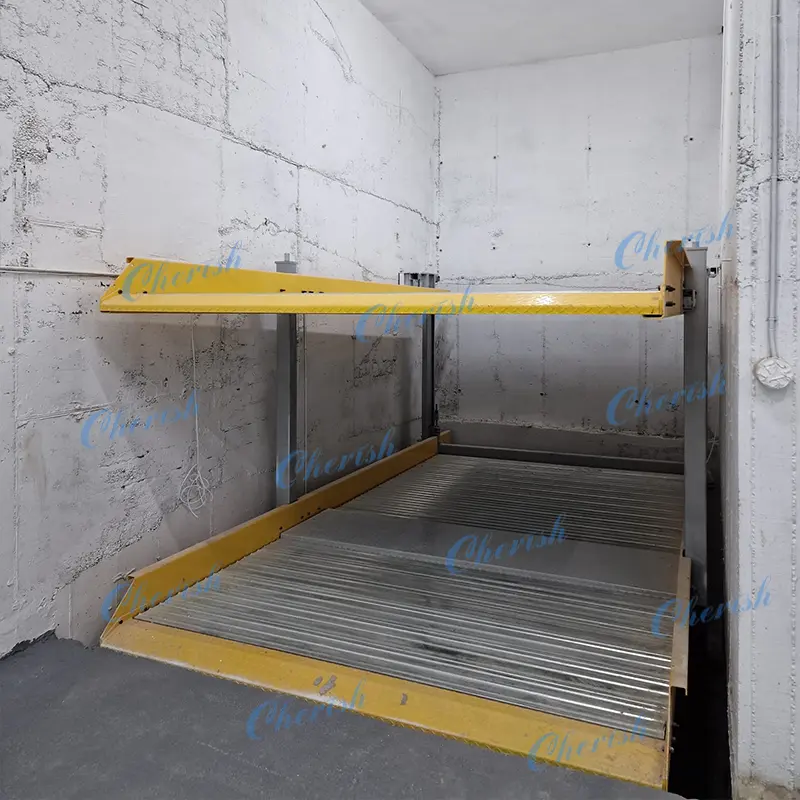

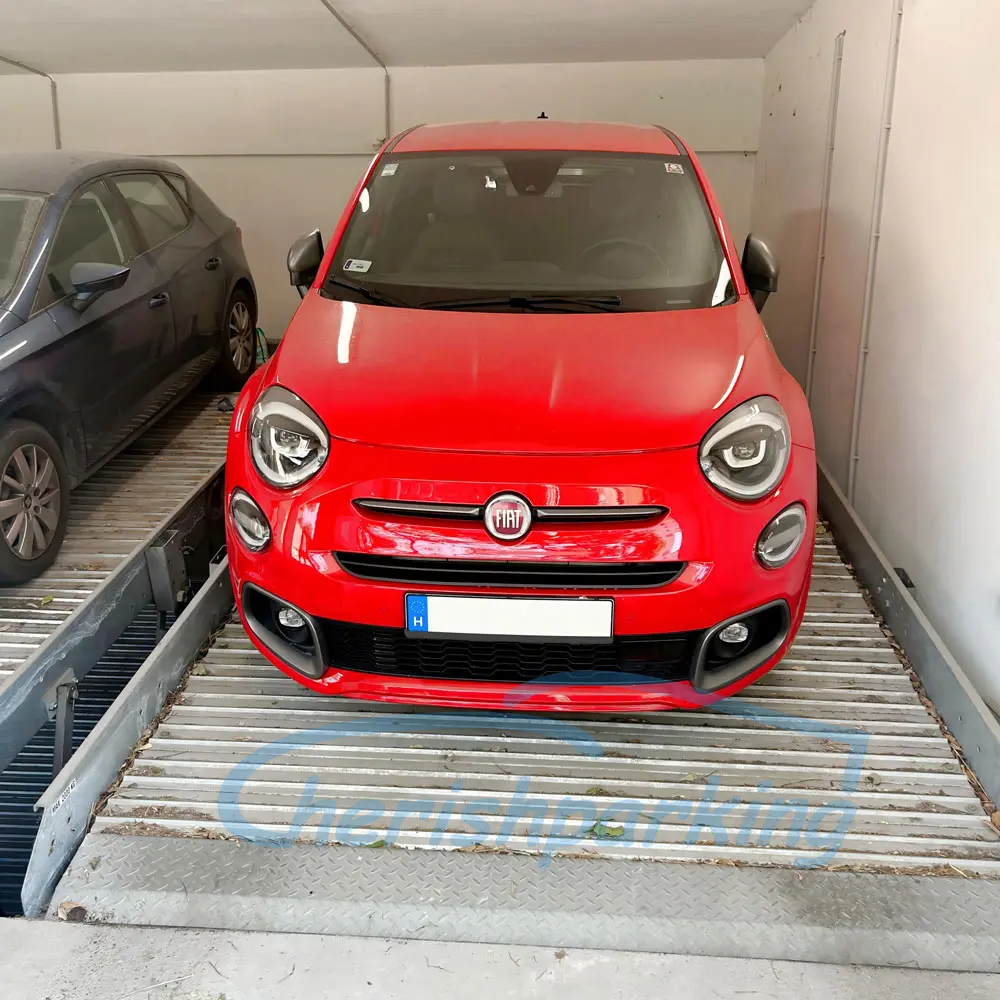

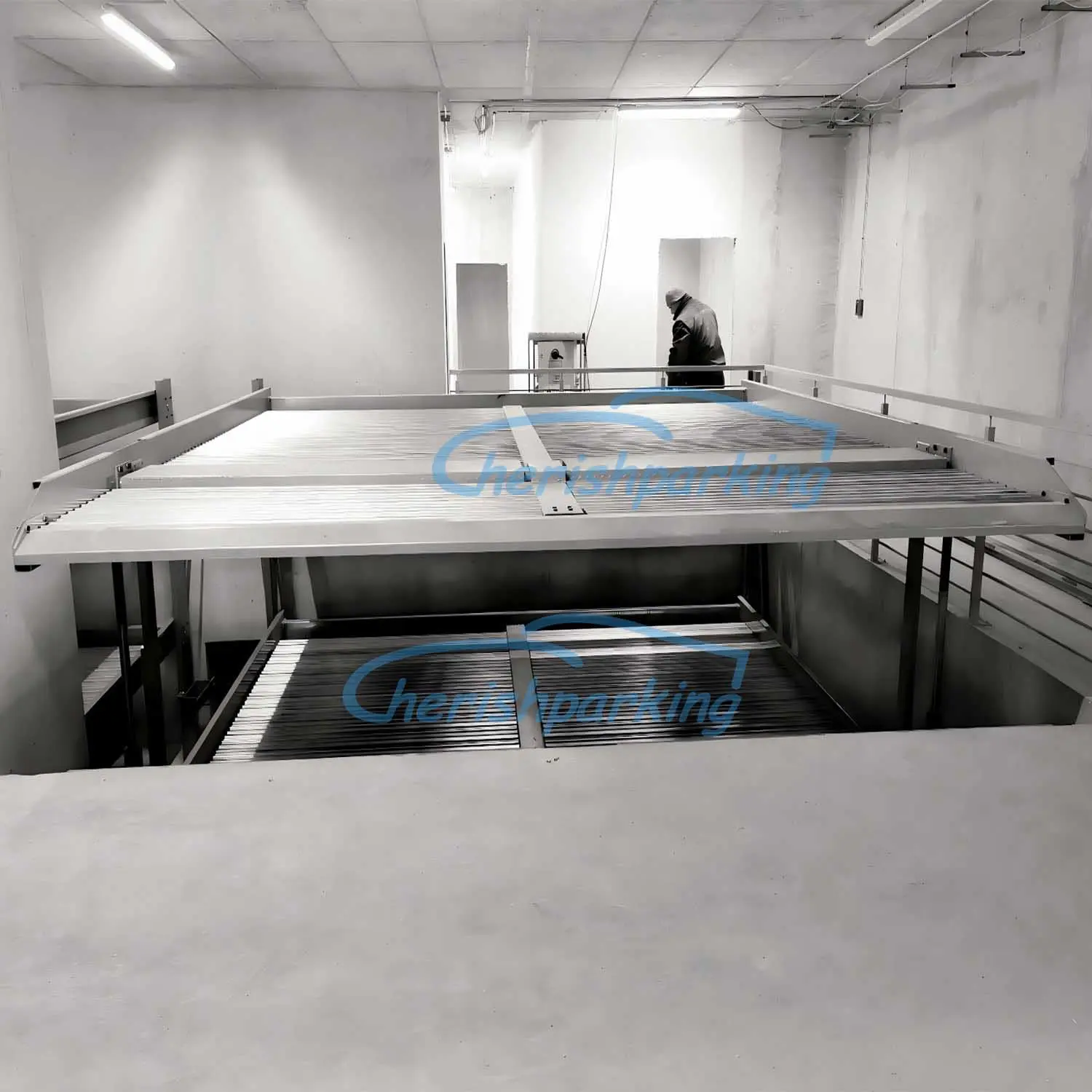

Drawing & Case
