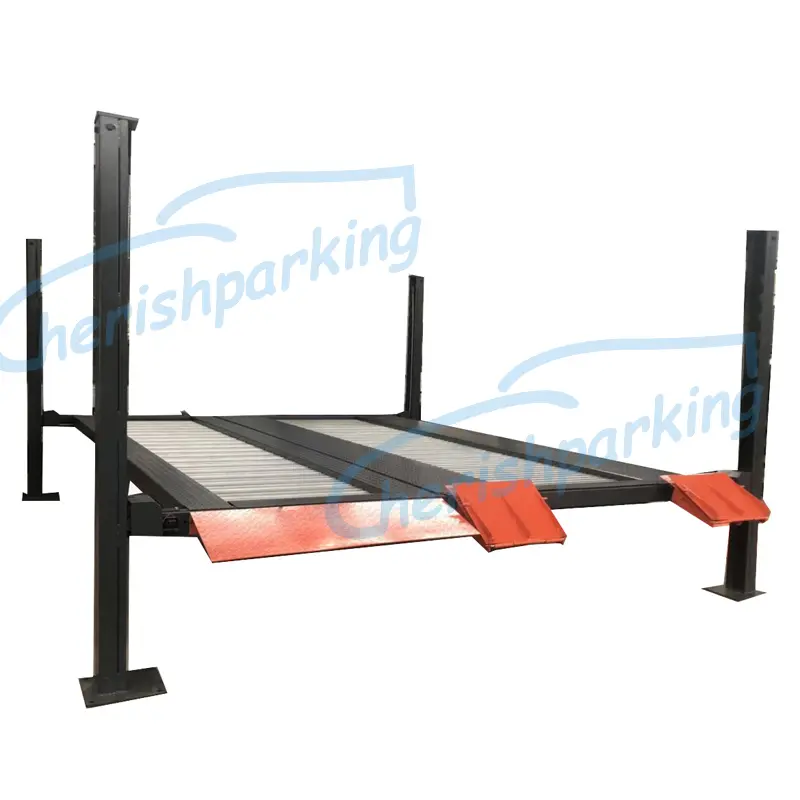

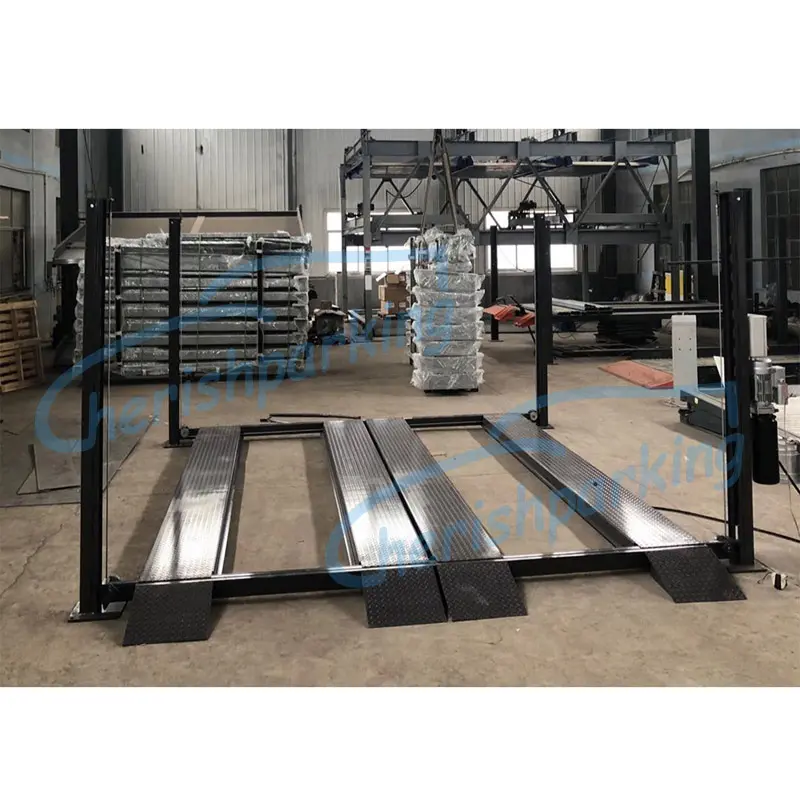

4 Cars Four Post Car Parking Lift
Products Feature
· Double-wide design that can accommodate four vehicles. This design efficiently utilizes space, enabling users to park four cars in a single setup, which is highly practical for areas with limited parking space.
· Customizable according to the layout. Its compact design not only saves space but also cuts down costs. Whether it's a small garage or a large - scale parking lot, it can be tailored to fit the specific needs.
· Dual safety locks are provided. The first one is an integrated adjustable safety lock ladder, and the other automatically activates when the wire rope breaks. This double - protection mechanism ensures the safety of parked vehicles.
· The runway can accommodate both wide and narrow vehicles. It is designed with flexibility in mind, allowing different types of cars to enter and exit without any issues.
· It has a total lifting capacity of 3000 kg. This substantial capacity makes it suitable for lifting a variety of vehicles, from sedans to SUVs.
· Each column is equipped with multi - position safety locks. These locks offer multiple locking options, enhancing the stability and safety of the entire structure.
· There is a hidden single hydraulic cylinder. This design not only gives a sleek look but also ensures smooth and efficient operation.
· Increasing the pulley diameter reduces cable fatigue. This measure extends the service life of the cables, leading to less maintenance.
· The mechanical anti - fall locks allow for multiple stop heights. It provides users with more control over the lifting process, making it convenient for different parking and maintenance requirements.
· The position of the power unit can be customized. This flexibility enables installation in various environments according to specific needs.
· The position of the control panel is adjustable. It makes the operation more user - friendly, allowing operators to access it conveniently.
· There are protective devices to prevent wire rope loosening and breakage. These devices add an extra layer of safety to the equipment.
· The surface is treated with powder coating. This treatment not only gives an aesthetic appearance but also protects against corrosion, ensuring long - term durability.
Specifications
| Model No. | CHFL2+2 |
| Lifting Capacity | 3000 kg |
| Lifting Height | 1965 mm |
| Width between Runways | 3823mm |
| Lock Device | Dynamic |
| Lock release | Electric auto release |
| Drive Mode | Hydraulic Driven + Cable |
| Power Supply / Motor Capacity | 220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw |
| Safety Device | Anti-falling Device |
| Operation Mode | Hydraulic Drive + Steel Wire Rope |

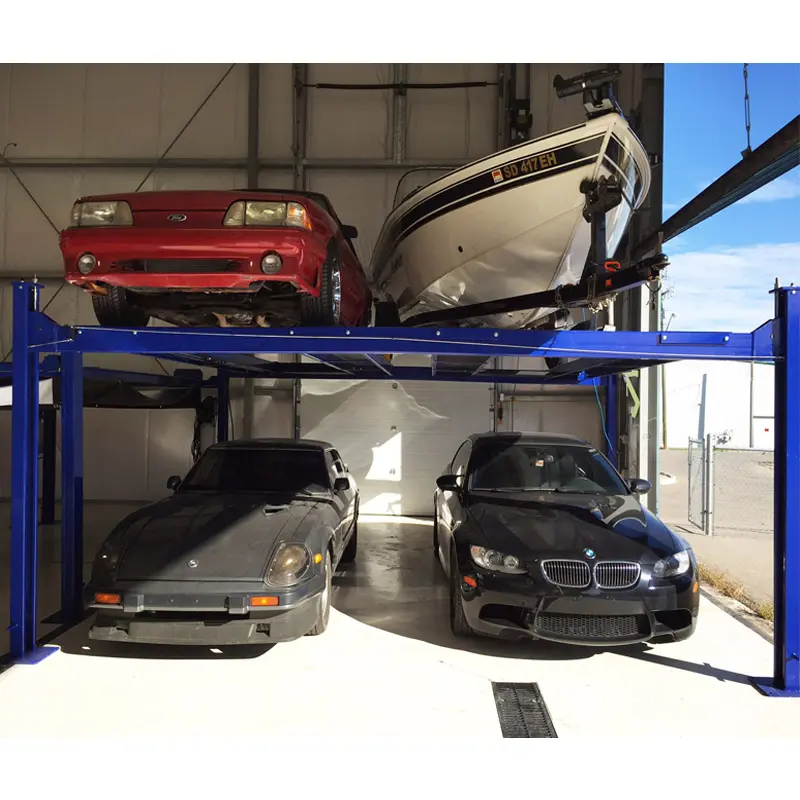

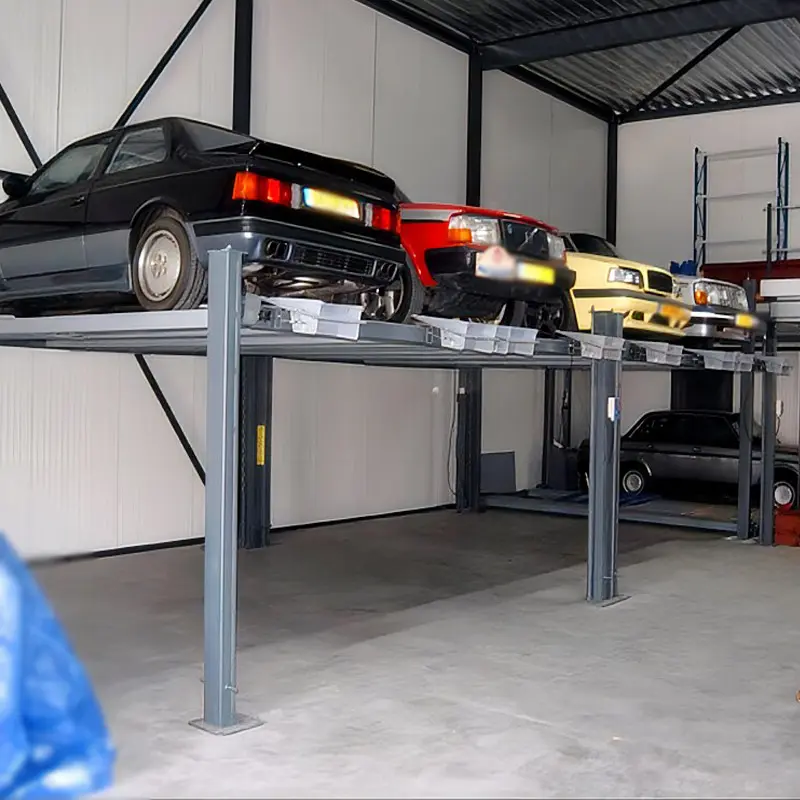

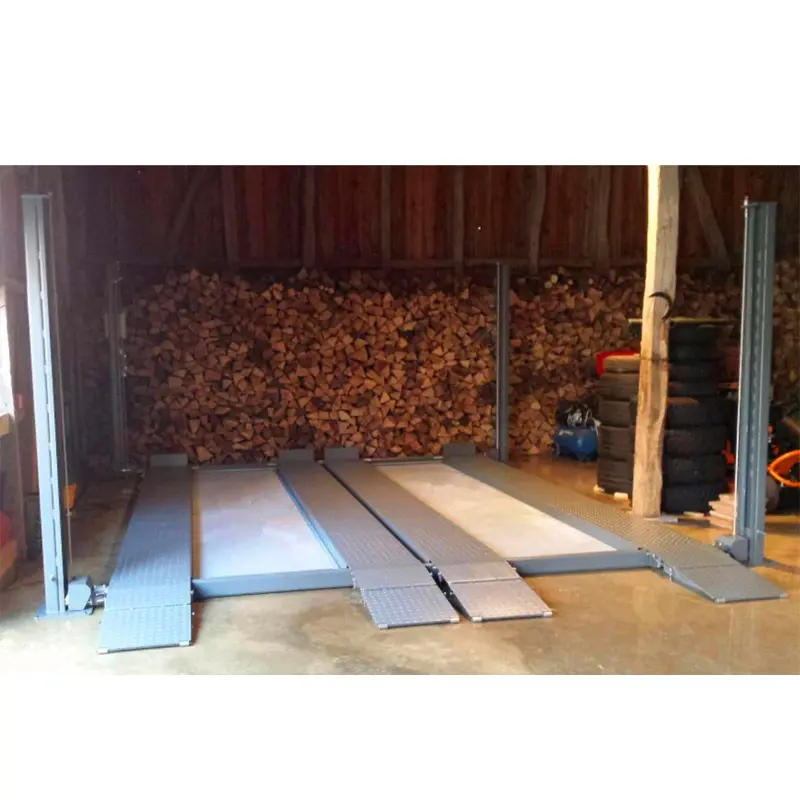

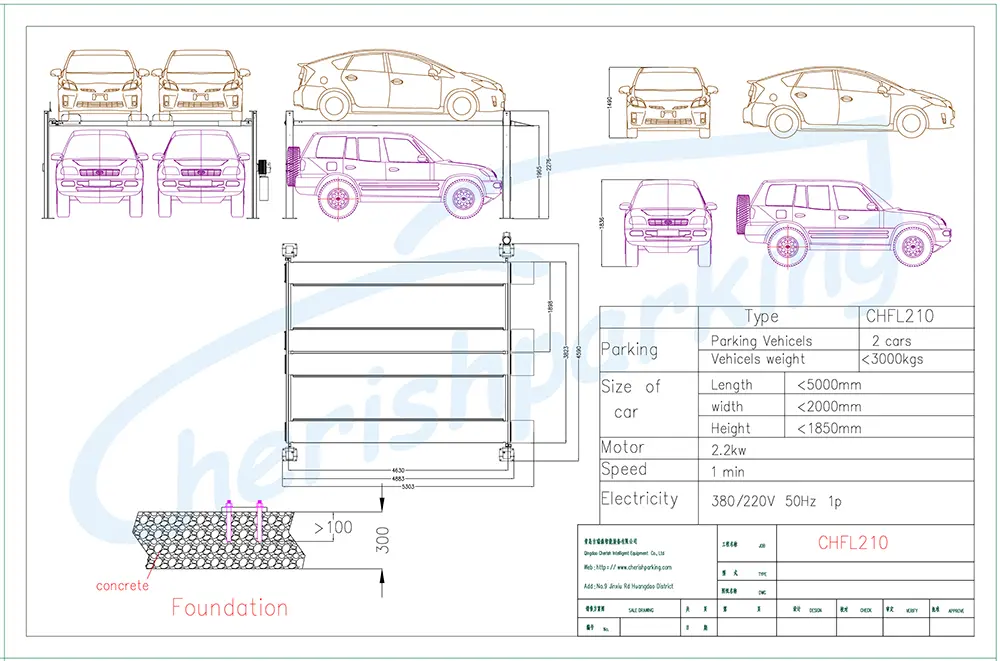

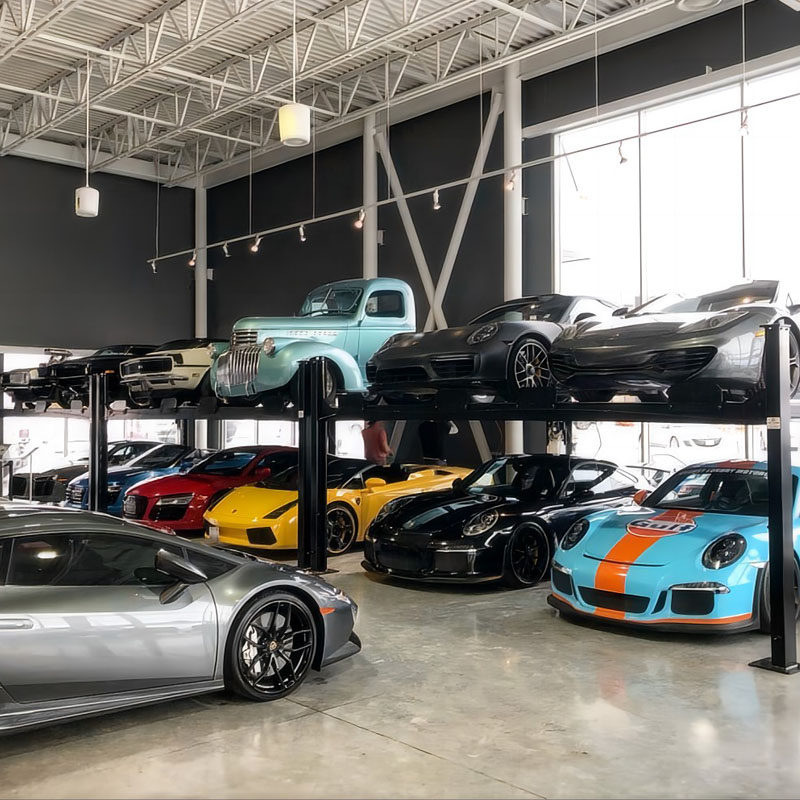

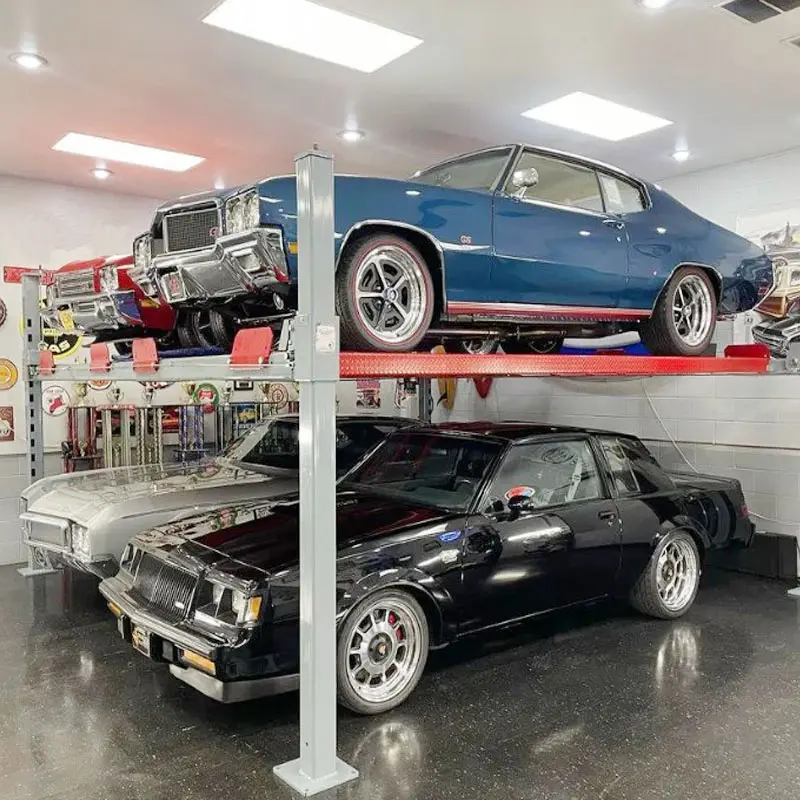

Drawing & Case
